The TEB is designed for maximum flexibility. Used with the Hammerfall series and the HDSP 9652, it can even be used at sample rates of 88.2 kHz and 96 kHz. Meeting the TDIF specification, Double Line mode uses two channels in single speed to get one channel in Double Speed. Therefore at 88.2/96 kHz up to 4 channels are available.
Installation is done in a convenient manner using the supplied bracket. No PCI slot on the motherboard is required. The integrated Clock Select Switch selects the TDIF reference clock, thus avoids any clocking problems even with 'problematic' TDIF devices

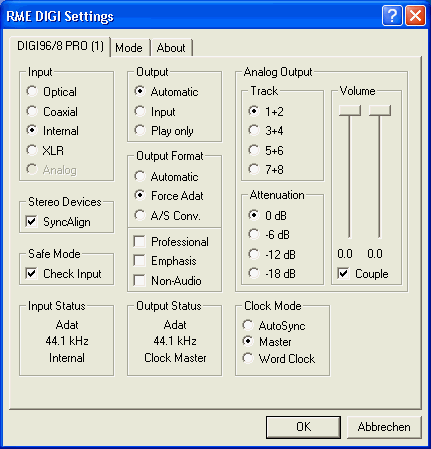

Using the Expansion Board is very easy to do, thanks to the clearly structured and informative Settings Dialog of RME's cards. The TEB operates like any other converter with ADAT input and output, but is connected internally. Therefore the input selector has to be set to 'Internal'.
The TEB receives its clock either from the card or the external TDIF device. This is selected via the switch at the bracket.
The Input Status displays the selected input (Internal), the current sample rate (44.1/48) and format (Adat).
The ADAT output of all cards operate in parallel to the TDIF output. When Hammerfall or HDSP 9652 are operated in Double Speed mode, the TEB automatically converts the audio data to 4-Channel Double Line format.
Tech Specs:
TDIF Port: D-sub 25 pin
Supported sample rates: 44.1 kHz, 48 kHz, varispeed (33 - 57 kHz)
Double Line Mode: 4 channels at 88.2 kHz and 96 kHz (not with DIGI96 series)
Word Clock Output: BNC, low-impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
Sync Source: ADAT (host/card) or TDIF
Power supply: 3.5" floppy connector, 5 V DC, 100 mA
Standard bracket, board dimensions: 75 x 95 mm,
2 internal cable 2-pin, 1 internal cable 3-pin, 1 power adapter cable 5 1/4" to 2 x 3.5" included
